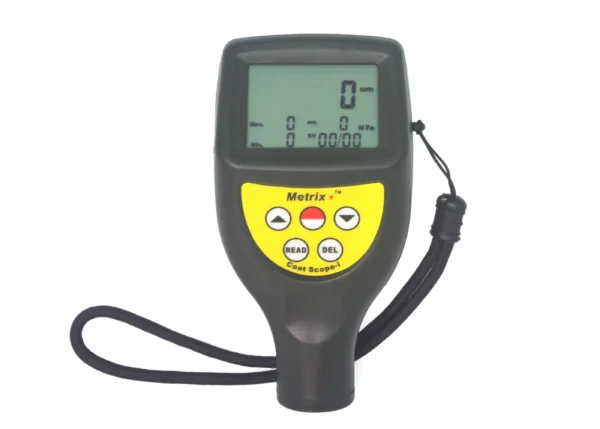

Features: Integrated probe for F and NF substrates with automatic substrate recognition. Zero-point calibration and multi-point calibration. Data storage and recall. Statistics of max, min and avg value of readings calculated and displayed. Backlit LCD display. Metric/imperial conversion. Single and continuous measuring modes. International Standard: – It meets the standards of both ISO 2178 and ISO 2361 as well as DIN, ASTM and BS. Measuring principle: – Magnetic induction(F) & Eddy current(NF) Metric/Imperial: – Selectable Minimum curvature radius: – F : 1.5mm(convex) ; 25mm(concave) , NF : 3mm(convex) ; 50mm(concave) Minimum measuring area: – Diameter 6mm Minimum thickness of substrate: – 0.3mm Memory storage and recall: – 99 groups of measurement Statistics: – Max, min and avg value of readings Additional features: – Low Battery Indicator, Auto power off Applications: This Gauge is designed for non-destructively measuring the thickness of coatings on ferrous and non-ferrous substrates. It can be used to measure thickness of paint, galvanizing layer, lacquer layer, porcelain enamel, phosphide layer, copper tile, anodizing layer, varnish, plastic coatings, powder, etc. Measuring Principle: This instrument has a unique single external probe which uses the principle of electromagnetic induction to measure the thickness of non-magnetic coatings on magnetic substrates and eddy current principle to measure thickness of non-magnetic coatings on non-magnetic substrates.

Specifications
